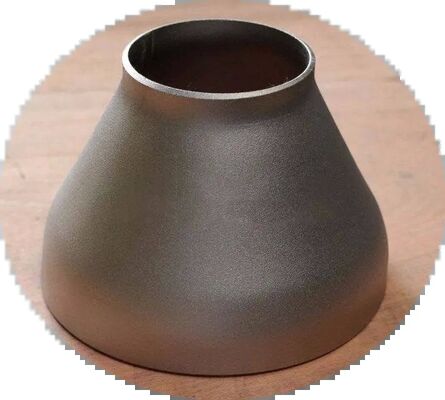

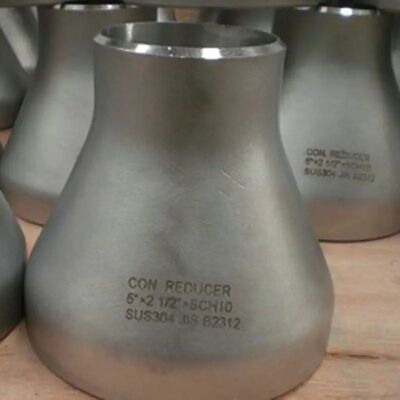

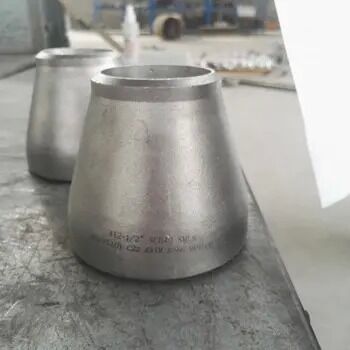

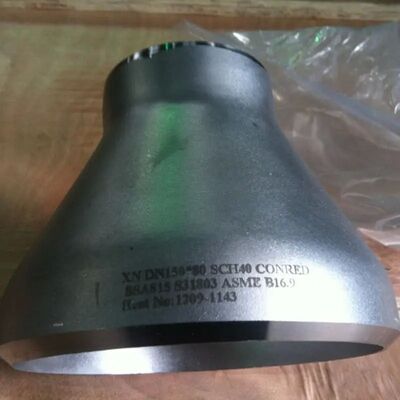

316L Stainless Steel Butt Weld Reducer ASME B16.9 Standard Pipe Adapter Class 150 300#

  • 316L Stainless Steel Butt Weld Reducer ASME B16.9 Standard Pipe Adapter Class 150 300#
  • 316L Stainless Steel Butt Weld Reducer ASME B16.9 Standard Pipe Adapter Class 150 300#
  • 316L Stainless Steel Butt Weld Reducer ASME B16.9 Standard Pipe Adapter Class 150 300#
  • 316L Stainless Steel Butt Weld Reducer ASME B16.9 Standard Pipe Adapter Class 150 300#
  • 316L Stainless Steel Butt Weld Reducer ASME B16.9 Standard Pipe Adapter Class 150 300#
Herkunftsort Shanghai, China
Markenname TOBO
Zertifizierung ISO/TUV/SGS
Modellnummer Edelstahl-Reduzierer
Min Bestellmenge 1 Stk
Preis Verhandelbar
Verpackung Informationen Standard-Versandpaket
Lieferzeit 15-30 Arbeitstage
Zahlungsbedingungen T/T, Western Union
Versorgungsmaterial-Fähigkeit 10 Tonnen/Monat
Produktdetails
Produktname Edelstahl 316L Stumpfschweißreduzierer ASME B16.9 Rohradapter Klasse 150 300# Größenreduktor Verringerer mit einer Länge von 1/2'-40'
Zahlung T/T, L/C, Western Union, Geld-Gramm Wärmebehandlung Normalisierung, Vergütung, mildernd
OEM Verfügbar Hauptstandard ASTM, ANSI, LÄRM, GOST, BS, GB
Oberflächenbehandlung Poliert/verzinkt Verpackungsart Holzkiste
Druck 150LB-2500LB Wandstärke SCH 5 - SCH XXS
E-Mail undyhuang@cnjdgy.com Kopfcode runden
Temperaturbewertung -20°C zu 200°C Standardspezifikation ASTM, JIS, BS, DIN, UNI usw.
Service OEM-Service Typ Reduktor Flansche für den Großhandel
Hervorheben

316L Stainless Steel Butt Weld Reducer

,

ASME B16.9 Standard Pipe Adapter

,

Class 150 300# Stainless Steel Reducer
Hinterlass eine Nachricht
Produkt-Beschreibung

ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings


1. Product Description

The Stainless Steel Reducer is a high-integrity pipe fitting engineered for reliable diameter reduction or expansion within fluid handling systems. Fabricated from premium corrosion-resistant alloys, it delivers smooth transitional geometry that minimises flow disturbance. Offered in Concentric (axially symmetric) and Eccentric (flat-aligned offset) configurations, it accommodates diverse installation orientations and service conditions.


2. Product Applications

  • Long-distance oil & gas trunk lines

  • Refinery and cracking units

  • Industrial water distribution and desalination plants

  • Thermal, combined-cycle and nuclear power stations

  • Sterile processing in  biotechnology

  • CIP/SIP systems in dairy, brewery and juice production

  • Floating production storage and offloading (FPSO) vessels

  • Metallurgical and mining slurry handling

  • District heating and cooling networks

​

​3.Product Advantages

  • Wide selection of austenitic, ferritic and duplex stainless steels to match specific corrosivity levels.

  • Superior dimensional consistency – roll‑formed or forged construction with fully penetrated weld preparation.

  • Enhanced structural integrity – seamless designs eliminate seam-related failure modes; welded options offer cost-effectiveness for large diameters.

  • Excellent surface finish options reduce fouling and facilitate clean-in-place operations.

  • Engineered transition profile yields pressure recovery and energy savings over extended duty cycles.

  • Full traceability with heat number stamping and mill test certificates (EN 10204 3.1/3.2).

  • Flexible manufacturing – non-standard diameters, custom wall thicknesses and special bevel angles accepted.

​316L Stainless Steel Butt Weld Reducer ASME B16.9 Standard Pipe Adapter Class 150 300# 0​

4.Key Product Parameters



Parameter Specification / Range
Base Materials 304, 304L, 316, 316L, 317L, 321, 310S, 347H, 904L, 2205 Duplex, 2507 Super Duplex
Production Route Seamless (cold drawn / extruded) or Welded (longitudinal seam, plate-formed)
Seamless Size Range 1/2" – 20" (DN15 – DN500)
Welded Size Range 1/2" – 48" (DN15 – DN1200)
Wall Thickness Series SCH 5S, 10S, 20S, 40S, 80S, 160, STD, XS, XXS (1.0 – 35 mm)
Geometric Type Concentric Reducer, Eccentric Reducer
End Connection Style Butt-weld (BW) — beveled ends; Socket-weld (SW) — square cut
Bevel Specification 37.5° ± 2.5° bevel, 1.6 mm root face, per ASME B16.25 or DIN 2616
Diameter Tolerance OD: ±1.6 mm (DN ≤ 200); ID: ±0.8 mm; Wall: ±10% (schedule-dependent)
Out-of-Roundness ≤1.0% for seamless; ≤1.5% for welded (measured at pipe ends)


FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
