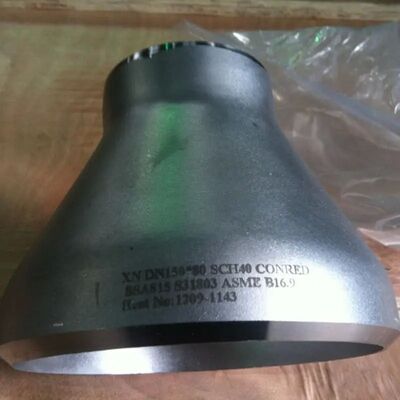

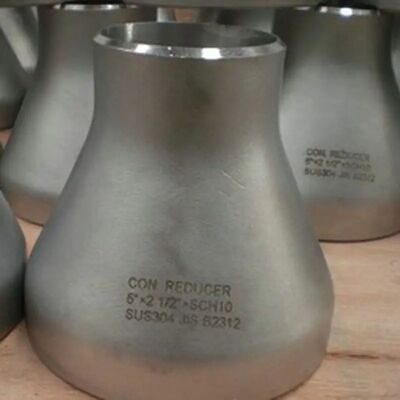

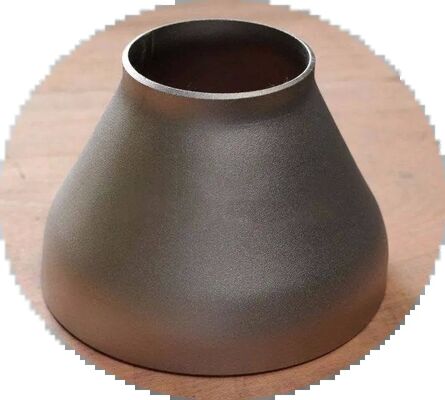

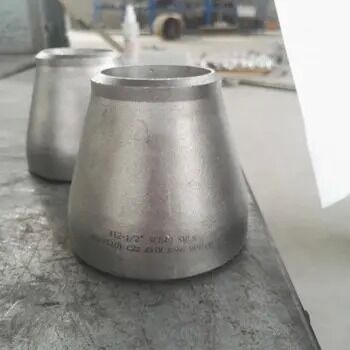

ANSI B16.9 Sch 40 Class 150 Stainless Steel Butt Weld Reducer Pipe Fitting

  • ANSI B16.9 Sch 40 Class 150 Stainless Steel Butt Weld Reducer Pipe Fitting
  • ANSI B16.9 Sch 40 Class 150 Stainless Steel Butt Weld Reducer Pipe Fitting
  • ANSI B16.9 Sch 40 Class 150 Stainless Steel Butt Weld Reducer Pipe Fitting
  • ANSI B16.9 Sch 40 Class 150 Stainless Steel Butt Weld Reducer Pipe Fitting
  • ANSI B16.9 Sch 40 Class 150 Stainless Steel Butt Weld Reducer Pipe Fitting
Herkunftsort Shanghai, China
Markenname TOBO
Zertifizierung ISO/TUV/SGS
Modellnummer Edelstahl-Reduzierer
Min Bestellmenge 1 Stk
Preis Verhandelbar
Verpackung Informationen Standard-Versandpaket
Lieferzeit 15-30 Arbeitstage
Zahlungsbedingungen T/T, Western Union
Versorgungsmaterial-Fähigkeit 10 Tonnen/Monat
Produktdetails
Produktname Sechskant-Stumpfschweißreduzierer aus Edelstahl, ANSI B16.9 Sch 40, Klasse 150 Materielles Grrade 904l
Verbindungstyp Weibliche x männlich Oberflächenbeschaffenheit Poliert / gebeizt / passiviert
Beenden Poliert Anderer Name Rohrverbindungen aus Edelstahl
Zahlung T/T, L/C, Western Union, Geld-Gramm Verbindung Schweißvorrichtung mit Schweißvorrichtung
Stahlsorte S31803 ((2205) S32205 S32760 S32750 Innendurchmesser 1/2
Größe Maßgeschneidert Druckstufe 150 PSI
OEM-Service Unterstützt Produktname Edelstahl-Reduzierer
Paket Karton, Palette usw. Form Konzentrisch/Exzentriker
Hervorheben

ANSI B16.9 Stainless Steel Reducer

,

Sch 40 Butt Weld Reducer

,

Class 150 Pipe Fitting
Hinterlass eine Nachricht
Produkt-Beschreibung

Stainless Steel Hexagonal Butt Weld Reducer ANSI B16.9 Sch 40 Class 150 Fitting


1. Product Description



Stainless Steel Reducer is a durable pipe fitting designed for smooth diameter transitions between pipes of different sizes. Available in Concentric (center‑aligned) and Eccentric (flat‑side offset) styles, it ensures stable flow, low turbulence, and reliable performance across a wide range of industrial applications.


2. Product Applications

  • Oil & gas pipelines and refineries

  • Chemical and petrochemical plants

  • Water supply and wastewater treatment

  • Power generation (thermal, nuclear, renewable)

  • Food and beverage processing

  • Marine engineering and shipbuilding

  • HVAC and industrial refrigeration

  • Pulp, paper and textile mills

  • Metallurgy and mining

​

​3.Product Advantages

  • Excellent corrosion and rust resistance – suitable for harsh, humid, or chemical environments.

  • High mechanical strength with outstanding pressure and wear resistance.

  • Precision manufacturing ensures accurate dimensions and leak‑free welded connections.

  • Integrated forming technology reduces weld defects and extends service life.

  • Low maintenance – waterproof, rust‑proof, and long‑lasting.

  • Optimised internal profile keeps pressure loss below 5% across a wide temperature range.

  • Fully customisable – materials, wall thicknesses, surface finishes, and special sizes available.

​ANSI B16.9 Sch 40 Class 150 Stainless Steel Butt Weld Reducer Pipe Fitting 0​

4.Key Product Parameters



Parameter Specification
Material Grades 304, 304L, 316, 316L, 317L, 321, 310S, 347, 904L, Duplex 2205, Super Duplex 2507
Size Range – Seamless 1/2" – 20" (DN15 – DN500)
Size Range – Welded 1/2" – 48" (DN15 – DN1200)
Wall Thickness SCH 5S, 10S, 20S, 40S, 80S, STD, XS, XXS (1.0 – 30 mm)
Reducer Type Concentric, Eccentric
End Connection Butt-weld (BW, beveled), Socket-weld (SW, square cut)
Manufacturing Standards ASME B16.9, B16.28, MSS SP-43, DIN 2616, JIS B2313, GB/T12459, GB/T13401
Tensile Strength (min.) ≥515 MPa (316/316L); ≥620 MPa (Duplex)
Surface Finish Pickled & passivated, polished, sandblasted, electro-polished
Service Temperature -20°C to 400°C (standard); up to 650°C for high-temp grades
Pressure Loss (typical) <5% of inlet pressure under normal flow conditions
Dimensional Tolerances OD: ±1.5 mm, wall thickness: ±10% ~ 12.5% (per standard)


FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
